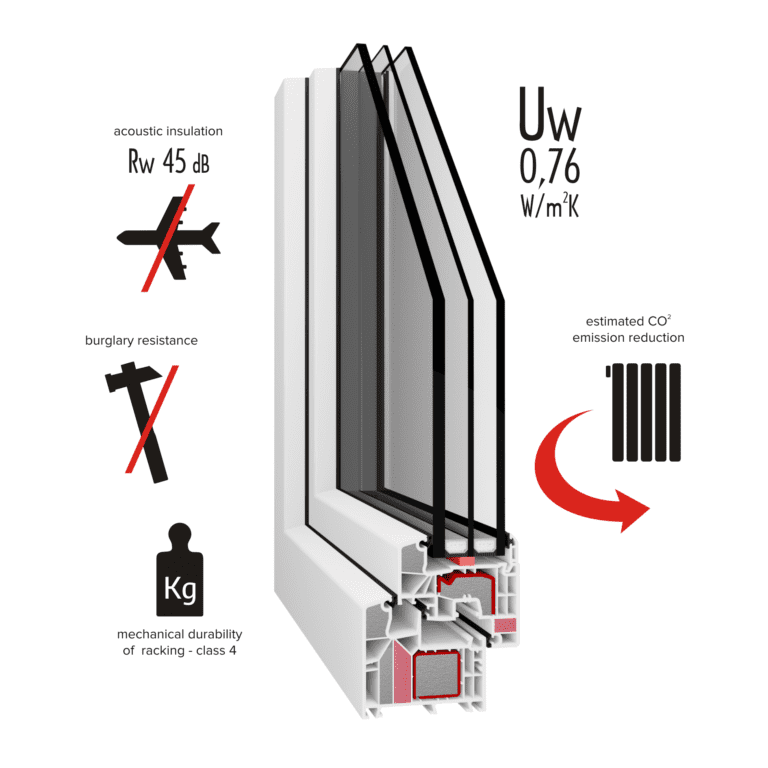

Passiv-line S windows – a multifunctional window for the 21st century. The window is intended for use in residential and public buildings, where it is required to achieve above-average results in terms of reducing heat energy consumption, reducing CO2 emissions with a simultaneous and high level of rooms protection against noise, and the highest level of property protection achievable for PVC-U structures. An outstanding level of such features as heat transfer, air permeability, acoustic insulation and burglary resistance, combined with the highest achievable levels of durability and mechanical strength, make Passiv-line S windows unlimitedly applicable in urban areas, located in any climate zone and any wind load zone, regardless of the terrain category.
The special features of Passiv-line S windows are as follows:
- Heat transfer for the reference window Uw = 0,78 W/(m2*K)
- Acoustic insulation for the reference window Rw = 45(-2;-5) dB ; RA1 43 dB ; RA2 40 dB
- Burglary resistance for the reference window: class RC2(optional)
Furthermore
- Estimated reduction of CO2 emissions for the reference window in a coal-heated building – 70,3 kg/m2
- Estimated reduction of CO2 emissions for the reference window in a building heated with natural gas – 56,6 kg/m2
- Mechanical resistance of racking – class 4 – (weight of the glazed leaf opened to the angle of 90° + 800 N)
Advantages of the Passiv-line S product:
- greater stability of windows thanks to the stiffening interaction of the glass;
- better protection against burglary – no possibility to push the glass out of the sash, thanks to the perimeter gap with glue and thanks to the anti-burglary glass in P4 class and the safety fittings package;
- better acoustic insulation thanks to the glued glass pane and diversified construction of the special glass package and a triple set of gaskets;
- energy-saving – energy-modified window profiles – a significant reduction in heating costs;
- significantly better thermal insulation;
- property safety thanks to RC2 class (option to order);
- such a solution relates directly to the EU recommendations to reduce greenhouse gas emissions to the atmosphere (this window directly contributes to reducing thermal energy consumption).
Technical data
| Deph of profile installation | 85 ,, |
| Uf of the frame/sash assembly | 0,89 W/m²K |
| Number of gaskets at the sash/frame interface | 3 |
| Type of gaskets in profiles | TPE |
| Color of the gaskets in the veneer-covered joinery 1, 2 – sided | black |
| Heat transfer coefficient for the entire 1230 x 1480 window | Uw=0,79 W/m²K |
| Wind load resistance – deflection of the frame* | C5 |
| Water resistance (unprotected)* | E1500 |
| Air permeability * | 4 |
| Load bearing capacity of safety devices * | 350N |
| Heat transfer coefficient for the entire 1230×1480 window with an optional package and warm spacers ULTRA | Uw=0,76 W/m²K |
* test result acc. to the report for the selected sample
Production technology
Windows manufactured using the innovative V-Perfect technology, which consists in precise welding of profiles. That makes it possible to join them without the need to use a corner cleaner. This results in the unique effect of connecting the flashless profiles, which becomes almost invisible to the human eye.
| Weld in white windows | V-perfect / V TYPE |
| Weld/windows in wood-like veneer (applicable from the side of the veneer) | V-perfect |
| Weld/windows in smooth veneer (applies to the veneer side) | V-perfect |
Glazing unit
| Glazing bead | Classic |
| Glazing unit | 44.4TM/14A/6/14A/6TM Ug=0,6 W/m²K |
| Glass pane spaces | Warm Edge |
| Unit light transmission factor – Lt % | 72% |
| Solar Energy tranmission – g % | 48% |
| Available thicknesses of glass packages | 24-51 |
| “Warm” glazing optional | 44.4TM/14A/6/14A/6TM Ug=0,6 W/m²K with a PREMIUM (warm) edge |
| Warm Edge in the following colors: white, black, light brown, dark brown, gray | as standard |
| Glazing bead | Classic |
| Glazing unit | 44.4TM/14A/ 6/14A/6TM Ug=0,6 W/m²K |
| Glass pane spaces | Warm Edge |
| Unit light transmission factor – Lt % | 72% |
| Solar Energy tranmission – g % | 48% |
| Available thicknesses of glass packages | 24-51 |
| “Warm” glazing optional | 44.4TM/14A /6/14A/6TM Ug=0,6 W/m²K with a PREMIUM (warm) edge |
| Warm Edge in the following colors: white, black, light brown, dark brown, gray | as standard |
Profile
| Intermediate balcony sash – opening outwards or inwards | NO |
| Entrance door opening outwards or inwards | NO |
| A handle in the passive sash of the movable mullion | option to be ordered |
| Glued glass in the R, RU wing, increasing its statics | as standard |
| Closed reinforcement in the frame | as standard |
| Deph of profile installation | 85 mm |
| Number of chambers in the profile | 6 + insulation |
| Uf of frame / sash assembly | 0,89 W/m²K |
| Number of seals on the sash / frame connection | 3 |
| Type of gaskets in profiles | TPE |
| Colour of the gaskets in veneer-covered joinery 1, 2 – sided | black |
Fittings
| SIEGENIA TITAN AF fitting | as standard |
| SIEGENIA T-1000 fitting | NO |
| Rotating, self-aligning KoPiBo rollers – allows easy and comfortable operation of the handle | as standard |
| Anti-pry latches/ 1 sash | up to 4 |
| Microventilation in the TT sash | as standard |
| Incorrect position lock | as standard |
| Lifting device in the TT casement | as standard |
| Bottom fitting groove filled with seal | as standard |
| Aluminum handles | Premium handle |
| RC1 fitting (4 reinforced latches/ 1 sash, drill-proof sheet, aluminum handle with a key) | optional to order |
| RC2 fitting (all latches reinforced, drill-proof sheet, aluminum handle with a key) | optional to order |
| Entire window manufactured in RC2 class according to PN-EN 627 | optional to order |
| Reed relay, VdS certificate | optional to order |
| V V – axxent 24- hidden hinges | NO |
| Tilt before Turn TBT opening | optional to order |
| Komfort fitting – supports tilting | optional to order |
| Handle-controlled opening brake | optional to order |
| Multi-stage micro-ventilation | optional to order |
| Hand rail + balcony latch | optional to order |
| Winter-summer air latch | optional to order |
| Tilting mechanism from floor level – GEZE OL | NO |
GRADUAL TILT
- enables adjusting the intensity of ventilation; windows can be set in 5 different positions (tilt range from 4 to 33 mm)
WINTER-SUMMER AIR LATCH
- reduces heat loss and saves energy
- in the summer, a window is tilted as usual; in the winter the tilt is limited to approx. 40 mm
- integrated protection against closing shut
SPS MICRO-VENTILATION
- constant supply of the necessary volume of fresh air without drafts
- minimized risk of fungus and a healthy climate in the room
STANDARD HINGE
BALCONY SNAPPER CATCH
- together with a handle, it allows shuƫng the window from the outside, protects against loosing heat from a room, deactivated in the tilt position
CASEMENT LIFT
- prevents sagging of casements, ensures smooth closing, prevents mishandling
ANTI-BURGLARY CATCH
- a new generation of latches provides high security and low friction levels
ROTATING MUSHROOM SWIVEL
- locking element in the form of a rotating mushroom, which enables smooth and trouble-free opening, tilting, and closing of windows
- adapts automatically to changing conditions, for example to the ambient temperature
- enables-smooth adjustment of pressure
HANDLE-CONTROLLED OPENING BRAKE
- individual adjustment of opening width: casement is blocked at any desired orientation
- keeps the casement in the open position even in strong wind
- easy to retrofit
Warranty
80-MONTH
Profile
The Passiv-line S window is a new and innovative product. The highest level of protection against heat loss and noise with the highest class of burglary resistance achievable for PVC-U windows means that there are no window structures of similar utility among the available windows and balcony doors. Thanks to the unique accumulation of these features, the Passiv-line S window, on the one hand, protects its users against the harmful effects of noise and unauthorised intrusion attempts. At the same time, the Passiv-line S window brings them tangible financial benefits in the form of reduced consumption of heating materials, and on the other hand, effectively contributes to the ongoing fight against smog by reducing greenhouse gas emissions, in particular CO2.
Glass
The product innovation is based on a technical solution involving the use of a special glazing package with glued-in glass with a warm frame with improved acoustic insulation properties and Ug=0.6 (W/m2K) and energy-modified window profiles (some chambers filled with polyurethane foam) with three gaskets and RC2 hardware. Introduced to the AdamS Company’s range in January 2017, Passiv-Line S windows have a revolutionary sound insulation coefficient for a reference window ≥ Rw 45), while the thermal insulation coefficient of 0.78 W/(m2*K more than meets the technical requirements for Uw, which will come into force in 2021.
Windows
The Passiv-line S multi-functional window effectively protects houses and flats against noise and burglary. It brings tangible financial benefits to users resulting from the reduction of heat energy consumption for heating purposes. It reduces the emission of carbon dioxide and dust into the atmosphere, actively and effectively fighting smog. It is a window that meets the current needs of investors and the challenges facing the construction industry. Passiv-line S stands for silence, safety and clean air. Pure profit for everyone.
